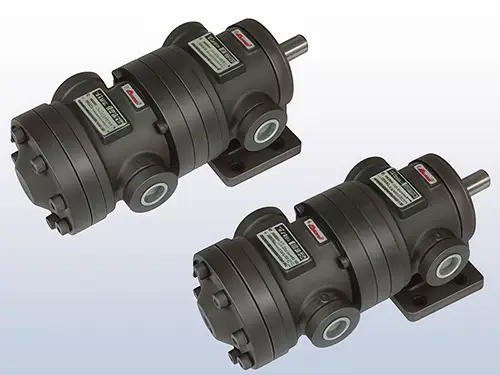

Double Fixed Displacement Vane Pump

Double Fixed Displacement Vane Pump

Features
  • This pump features a design with large flow, low noise, and high volumetric efficiency.
  • This series of pumps can be combined with a small flow, high-pressure pump to form a high-low pressure pump, saving motor power.
  • Shares a common shaft and motor, saving space.
Request a Quote
Technical Specifications
Model Vane pump Speed (rpm)
Max. pressure (psi) Delivery capacity (cc/rev) Max. pressure (psi) Delivery capacity (cc/rev) Max. Min.
50T-07 3000 1~12 1000psi 7 1800 900
50T-12 3000 1~12 1000psi 12 1800 900
50T-14 3000 1~12 1000psi 14 1800 900
50T-17 3000 1~12 1000psi 17 1800 900
50T-20 3000 1~12 1000psi 20 1800 900
50T-23 3000 1~12 1000psi 23 1800 900
50T-26 3000 1~12 1000psi 26 1800 900
50T-30 3000 1~12 1000psi 30 1800 900
50T-36 3000 1~12 1000psi 36 1800 900
50T-40 3000 1~12 1000psi 40 1800 900
50T-43 3000 1~12 1000psi 43 1800 900
150T-48 3000 1~12 1000psi 48 1800 900
150T-61 3000 1~12 1000psi 61 1800 900
150T-75 3000 1~12 1000psi 75 1800 900
150T-94 3000 1~12 1000psi 94 1800 900
150T-116 3000 1~12 1000psi 116 1800 900
