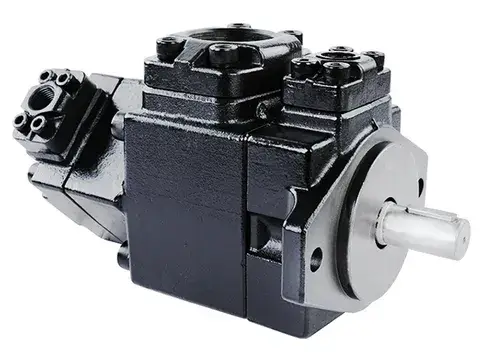

This series is composed of two high-pressure vane pumps, designed to provide a dual hydraulic source for hydraulic circuits requiring two simultaneous actions. It features a single suction port, which saves piping, simplifies use, and reduces costs.
| Model | Delivery capacity (cc/rev) | Max. pressure (kgf/cm²) | Speed (rpm) | ||||
| Max. | Min. | ||||||
| at 1000rpm | at 1200rpm | at 1500rpm | at 1800rpm | ||||
|
|
6.2 | 7.4 | 9.3 | 11.2 | 210 | 1800 | 1200 |
|
|
8.1 | 9.7 | 12.1 | 14.6 | 210 | 1800 | 950 |
|
|
10.1 | 12.1 | 15.1 | 18.9 | 245 | 1800 | 950 |
|
|
12.2 | 14.6 | 18.3 | 21.9 | 245 | 1800 | 950 |
|
|
13.6 | 17.1 | 21.5 | 25.7 | 245 | 1800 | 950 |
|
|
16.6 | 20.5 | 25.6 | 30.7 | 245 | 1800 | 950 |
|
|
18.6 | 23 | 28.8 | 34.5 | 245 | 1800 | 950 |
|
|
22.7 | 27.9 | 34.9 | 41.9 | 245 | 1800 | 950 |
|
|
25.3 | 31.3 | 39.1 | 46.9 | 245 | 1800 | 950 |
|
|
31 | 37.3 | 46.6 | — | 245 | 1500 | 950 |
|
|
26.2 | 31.4 | 39.3 | 47.1 | 245 | 1800 | 950 |
|
|
33 | 38.5 | 48.1 | 57.7 | 245 | 1800 | 950 |
|
|
38.2 | 45.8 | 57.3 | 68.7 | 245 | 1800 | 950 |
|
|
41.3 | 49.2 | 61.5 | 73.8 | 210 | ||
|
|
47.2 | 57.8 | 71.4 | 86.7 | 245 | 1800 | 950 |
|
|
53.1 | 63.7 | 79.6 | 95.5 | 245 | 1800 | 950 |
|
|
60.2 | 72.7 | 90.3 | 108.3 | 210 | 1800 | 950 |
|
|
65.3 | 78.3 | 97.9 | 117.5 | 210 | 1800 | 950 |
