Double Variable Displacement Vane Pump
  • Double Variable Displacement Vane Pump
  • Double Variable Displacement Vane Pump

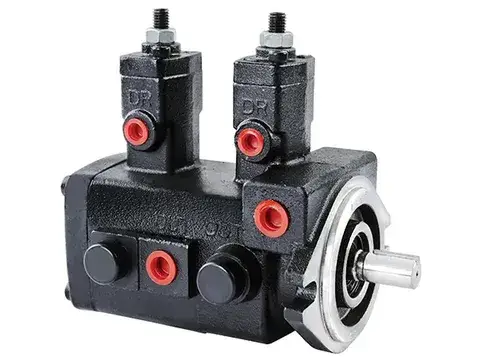

VP Series Double Variable Displacement Vane Pump

Features
  • Combines two variable displacement vane pumps into one unit, utilizing a common drive shaft.
  • Driven by a single motor, reducing assembly space requirements.
  • Can simultaneously supply different hydraulic circuits with their respective pressure and flow.
Request a Quote
Technical Specifications
Model Delivery capacity (at 1800rpm) (L/min) Operating pressure (bar) Speed (rpm)
Front pump Rear pump Max. Min.
VP-0808 8 8 3~8、 15~35、 30~55、 50~70 1800 800
VP-1212 12 12 3~8、 15~35、 30~55、 50~70 1800 800
VP-1515 15 15 3~8、 15~35、 30~55、 50~70 1800 800
VP-2020 20 20 3~8、 15~35、 30~55、 50~70 1800 800
VP-2323 23 23 3~8、 15~35、 30~55、 50~70 1800 800
VP-2626 26 26 3~8、 15~35、 30~55、 50~70 1800 800
VP-3030 30 30 3~8、 15~35、 30~55、 50~70 1800 800
VP-4040 40 40 3~8、 15~35、 30~55、 50~70 1800 800

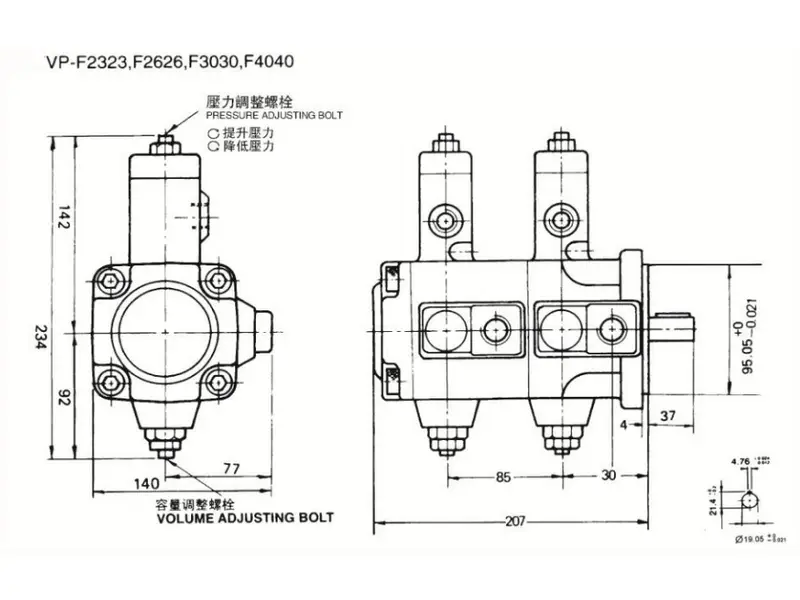

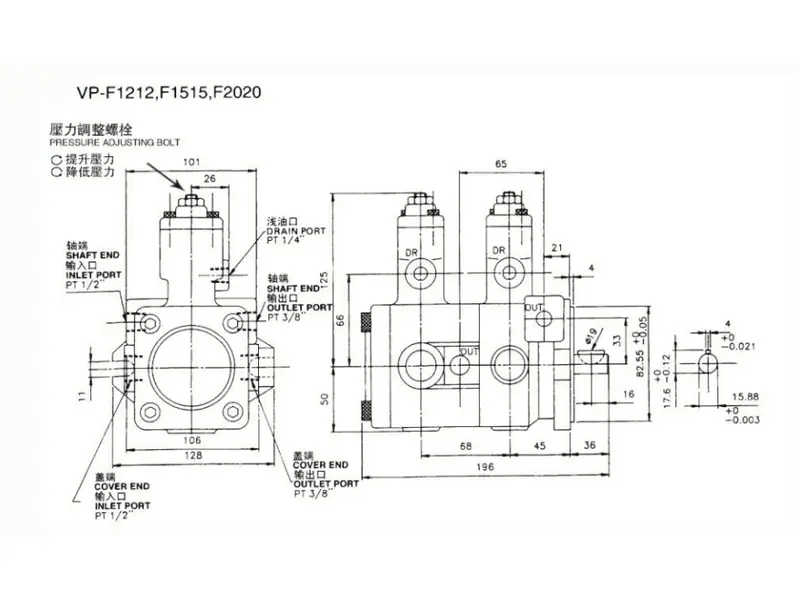

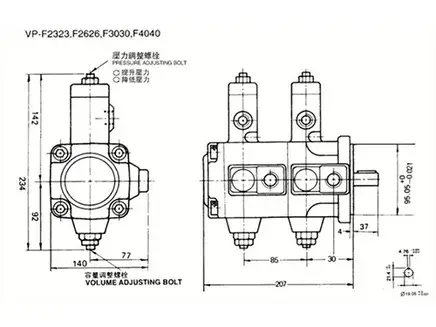

Dimensions
  • Double Variable Displacement Vane Pump
  • Double Variable Displacement Vane Pump
